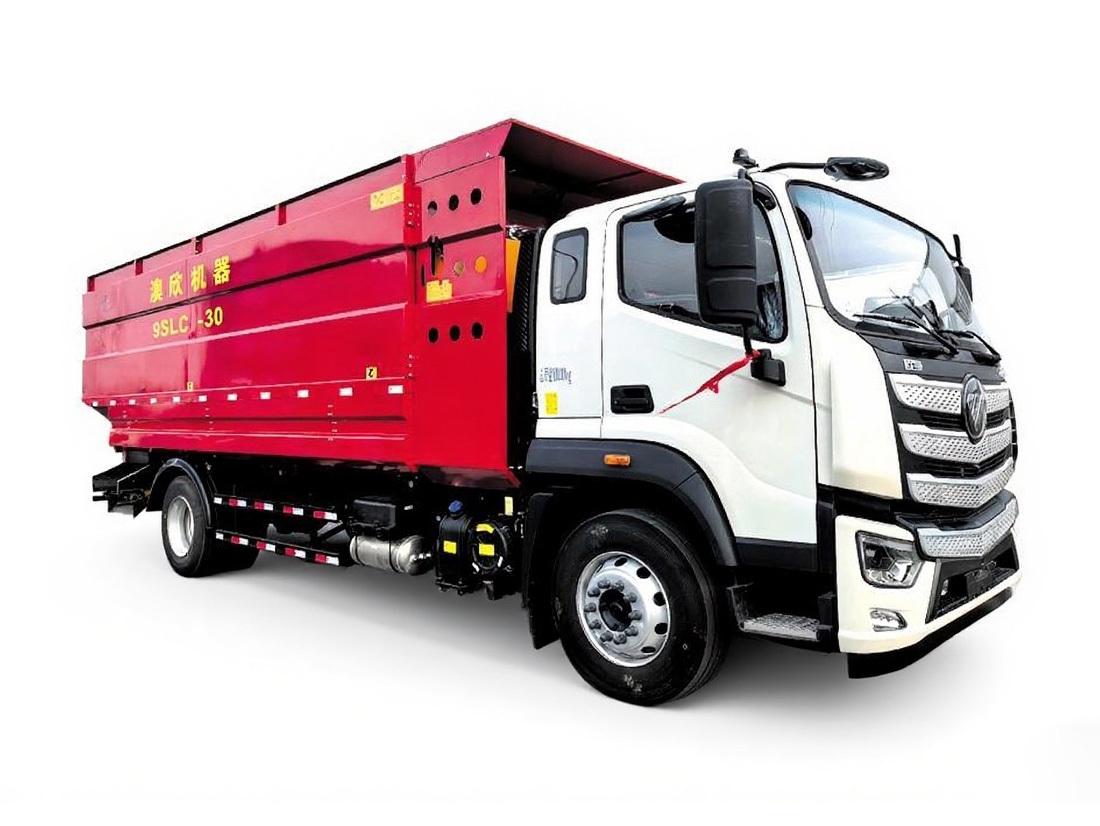

New-energy electric manned & unmanned collection vehicle

Keywords:

AoXin

Category:

Product Description

Technical Parameters of New Energy Unmanned Leftover Material Collection Vehicle III

Project Details	Technical Parameters	Note
External dimensions (length × width × height) (mm)	8000×2550×3300	Subject to the physical item.
Effective volume of the hopper	10 cubic meters
Matching chassis model	Well-known domestic brand	Subject to the physical item.
Drive mode	4×2
Power battery	Well-known domestic brand	Subject to the physical item.
Battery capacity	≥150kwh	Subject to the physical item.
Power take-off on the upper assembly	≥20kw	Subject to the physical item.
Drive motor	≥80kw	Subject to the physical item.
Braking method	Pneumatic-assisted brake
Reversing radar	There is
Material conveying method and number of transmission components	Single auger
Drag chain drive method	Motor
Collect the agitator	Diameter 480mm	Subject to the physical item.
Residual material conveying	Belt
Vehicle speed kilometers/hour	0-30
Weighing system	Hechang, Damaike (Italy)	Optional accessories include well-known domestic and international brands such as Aivision (USA). Compatible with DIGI-STAR, Kopten, Feedwatch, and others.
Weighing suspension method	4-point suspension
Weighing error	≤0.1% (f.s.)
Weight display protection rating	IP67
Tire specifications	8.25R2016RP	Subject to the physical item.
Payload kg	≥2000
Cab	Single-person cab
